Pinout for RJ45/Ethercon DMX coonectors on Luminex devices

Pinout for RJ45/Ethercon DMX coonectors on Luminex devices

For all Luminex devices using RJ45 (or Ethercon) for DMX connectivity, the pin is in compliance with the ANSI DMX standard E1.11

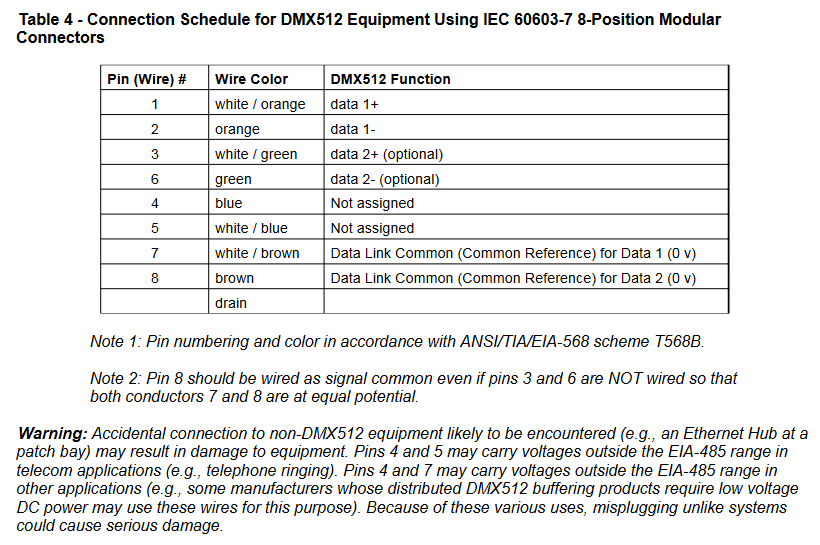

see the following excerpt from the standard that specifically describe the pinout for RJ45 connectors :

The Following Luminex devices using RJ45 connectors are all in complaince with this standard :

  • Lumisplit 2.10 (ethercon version)
  • DinMX4 (RJ45 version)
  • Luminode 4 DIN (RJ45 version)
  • Luminode 12 RJ45
